Why throughput choice matters for a localization box
When building a custom multi‑sensor fusion localization box, the network path you specify directly affects position update rate, sensor synchronisation and data integrity. Early design decisions—whether to rely on wired Ethernet, Fixed Wireless Access (FWA) using a Wi‑Fi Module, or cellular backhaul—change how much usable throughput is available to the fusion engine. The dominant field standard Wi‑Fi 5 (802.11ac) was introduced around 2013 and remains common in many deployments; that history matters when you weigh throughput and device compatibility.
Architectures under comparison
Compare three pragmatic architectures: wired Ethernet, Wi‑Fi‑based FWA, and cellular (4G/5G) links. Wired Ethernet gives predictable throughput and low latency but lacks installation flexibility. FWA with Wi‑Fi 5 provides easier field deployment and decent throughput with MIMO gains, though real throughput depends on channel congestion and antenna quality. Cellular offers range and mobility; throughput and latency vary by operator and spectrum, and costs can be higher for sustained sensor telemetry. Each path trades off bandwidth, latency and operational complexity—choose according to the most constrained resource in your fusion pipeline.
Throughput realities inside a fusion box
A multi‑sensor box typically aggregates cameras, IMUs, GNSS receivers and environmental sensors. Aggregate throughput can exceed expected peaks when cameras burst frames, so sustainable bandwidth is the metric to watch. Practical measures include average throughput over one minute, peak concurrent throughput and packet loss under load. Latency spikes harm time‑synchronised fusion more than small, steady reductions in bandwidth; optimise for low jitter as much as for raw Mbps. In trials in Nairobi public‑space pilots, the practical gap between theoretical and real throughput was the decisive factor in selection—Wi‑Fi 5 APs often delivered less than half of their headline rates under load.
Trade-offs and interference management
FWA simplifies installation but introduces radio interference vectors. Channel planning and selective use of 5 GHz channels limit overlap; antenna orientation reduces multipath. Avoid placing the fusion box near metal surfaces or crowded RF cabinets. Use quality diversity antennas and enable proper MIMO streams to improve resilience—do not rely on single‑antenna assumptions. And calibrate sensor timestamps for the link you choose—different backhaul types impose different jitter characteristics. —It is tempting to pick the most feature‑rich module; instead, align the module’s capabilities with the specific throughput and latency profile your fusion algorithms need.
Common specification mistakes
Several specification errors recur in field projects. First, overestimating available throughput by using peak theoretical rates rather than measured sustained rates. Second, ignoring uplink contention when multiple boxes share a point of presence. Third, under‑specifying antenna gain and cabling loss. Fix these by requiring a measured throughput SLA under realistic load, specifying minimum MIMO streams and by including headroom—at least 30% above expected peak. Document expected sensor burst patterns so the network can be sized for short, intensive uploads rather than only average use.
Three golden rules for selection
Rule 1 — Measure sustained throughput, not theoretical peak. Require a one‑minute sustained throughput figure in the spec and validate on a deployed test node. Use throughput and packet loss as the acceptance criteria.
Rule 2 — Prioritise latency stability over marginal extra Mbps. Fusion algorithms fail badly under jitter; specify maximum jitter and maximum one‑way latency for the data plane.
Rule 3 — Specify RF and physical installation constraints. Define antenna types, cable loss budgets and minimal MIMO stream counts to ensure the chosen module performs in real conditions—include fallback plans for congested 2.4 GHz bands and prefer 5 GHz channels where permissible.
Closing guidance

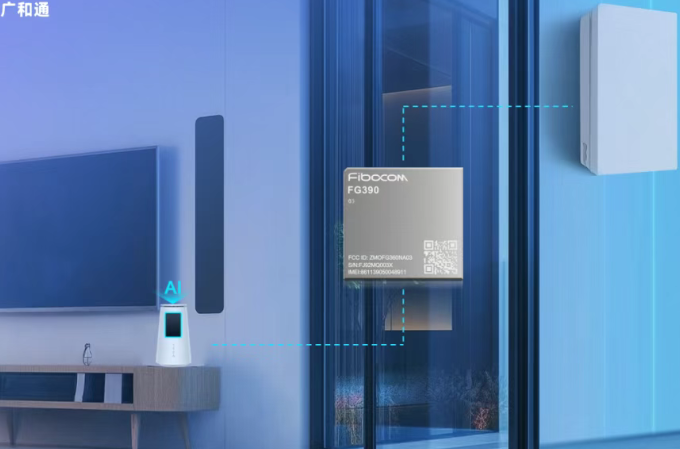

Apply these three metrics when you compare Wi‑Fi 5, cellular and wired options: sustained throughput, latency/jitter bounds and RF installation constraints. When the network path satisfies those tests, the fusion box will deliver stable localisation and reliable telemetry. For many deployments, selecting modules and integration partners who publish tested performance profiles—rather than only headline numbers—reduces risk and speeds roll‑out. Fibocom offers tested communication modules and documented performance that help bridge the gap between specification and field reality—choose partners who share measured data, not just promises. —
